Description

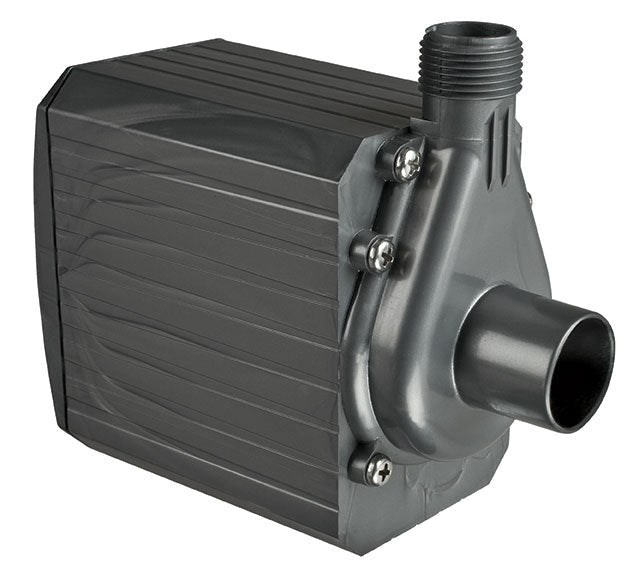

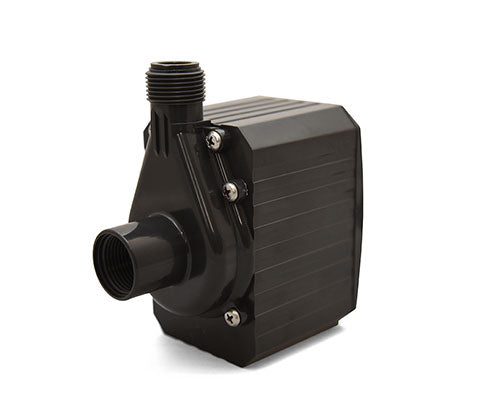

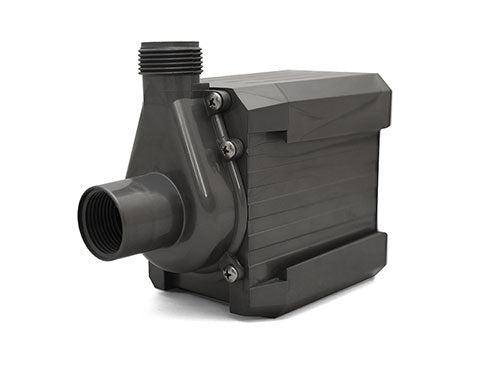

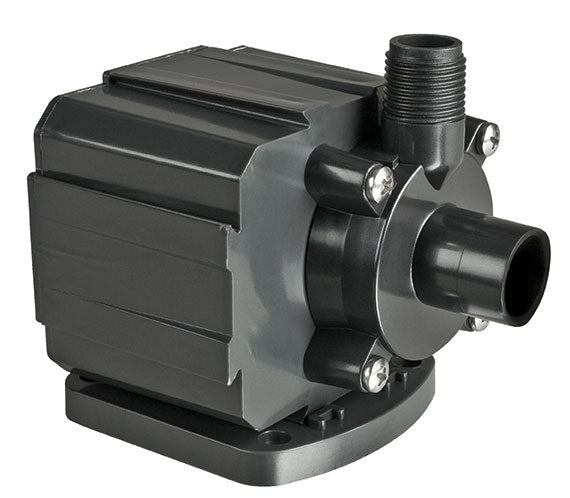

Supreme Aqua-Mag Magnetic Drive Water Pump
Efficient Magnetic Drive Technology
Supreme® Aqua-Mag 1.9 to 36 Series Pumps have been designed to handle virtually any application where water has to be moved. They have been fulfilling the needs of professionals and hobbyists for over 20 years with efficient, quiet, and reliable 24/7 performance. Aqua-Mags are ideal in either saltwater or freshwater environments and operate equally well in-line or submerged. With only one moving part, a magnetically driven impeller, and an epoxy-encased power unit, there’s never a fear that they will contaminate the water with harmful oils or chemicals.
Product Features
• Reusable Debris Pre-Filter
• Operates Submerged or In-Line
• 10’ Grounded Power Cord
• Energy Efficient
• Models 1.9 - ⅜” MPT Inlet, ¼” MPT Outlet
• Models 2, 3, 5, and 7 - 1/2” FPT Inlet, MPT Outlet
• Models 9.5, 12, and 18 - 3/4” FPT Inlet, MPT Outlet
• Model 24 and 36 - 1” FPT Inlet, MPT Outlet
• 5-Year Limited Warranty
Specifications
Model 2 - ITEM# 02512
Max. Watts/Amps: 24/0.4
Volts: 120 / 60Hz
Inlet: 1/2" FPT
Outlet: 1/2" MPT
Cord Length: 10'
Dimensions (L x W x H): 5.0" x 3.8" x 4.2"
|
Model 3 - ITEM# 02513
Max. Watts/Amps: 35/0.6
Volts: 120 / 60Hz
Inlet: 1/2" FPT
Outlet: 1/2" MPT
Cord Length: 10'
Dimensions (L x W x H): 5.0" x 3.8" x 4.2"
|
Model 5 - ITEM# 02515
Max. Watts/Amps: 45/0.9
Volts: 120 / 60Hz
Inlet: 1/2" FPT
Outlet: 1/2" MPT
Cord Length: 10'
Dimensions (L x W x H): 5.0" x 3.8" x 4.2"
|
Model 7 - ITEM# 02517
Max. Watts/Amps: 70/1.6
Volts: 120 / 60Hz
Inlet: 1/2" FPT
Outlet: 1/2" MPT
Cord Length: 10'
Dimensions (L x W x H): 5.0" x 3.8" x 4.2"
|
Model 9.5 - ITEM# 02710
Max. Watts/Amps: 93/1.33
Volts: 120 / 60Hz
Inlet: 3/4" FPT
Outlet: 3/4" MPT
Cord Length: 10'
Dimensions (L x W x H): 5" x 3" x 5.25"
|
Model 12 - ITEM# 02712
Max. Watts/Amps: 110/1.5
Volts: 120 / 60Hz
Inlet: 3/4" FPT
Outlet: 3/4" MPT
Cord Length: 10'
Dimensions (L x W x H): 6.4" x 3" x 5.25"
|
Model 18 - ITEM# 02718
Max. Watts/Amps: 145/1.55
Volts: 120 / 60Hz
Inlet: 3/4" FPT
Outlet: 3/4" MPT
Cord Length: 10'
Dimensions (L x W x H): 6.4" x 3" x 5.25"
|
Model 24 - ITEM# 02740
Max. Watts/Amps: 237/2.2
Volts: 120 / 60Hz
Inlet: 1" FPT
Outlet: 1" MPT
Cord Length: 10'
Dimensions (L x W x H): 7.25" x 4.0" x 6"
|
Model 36 - ITEM# 02745
Max. Watts/Amps: 256/3.0
Volts: 120 / 60Hz
Inlet: 1" FPT
Outlet: 1" MPT
Cord Length: 10'
Dimensions (L x W x H): 7.25" x 4.0" x 6"
|
PUMPING SPECIFICATIONS
|
||||||||||||||
PUMP
|
ITEM#
|
WATTS
|
FLOW AT 1’
|
FLOW AT 2’
|
FLOW AT 3’
|
FLOW AT 4’
|
FLOW AT 5’
|
FLOW AT 6’
|
FLOW AT 7’
|
FLOW AT 8’
|
FLOW AT 9’
|
FLOW AT 10’
|
FLOW AT 15’
|
SHUTOFF (FEET)
|
MODEL 2
|
02512
|
24
|
280
|
230
|
170
|
130
|
65
|
25
|
-
|
-
|
-
|
-
|
-
|
6’ 5”
|
MODEL 3
|
02513
|
35
|
420
|
375
|
325
|
280
|
235
|
190
|
140
|
90
|
30
|
-
|
-
|
10’ 4”
|
MODEL 5
|
02515
|
45
|
525
|
450
|
400
|
350
|
300
|
235
|
200
|
150
|
95
|
-
|
-
|
10’ 6”
|
MODEL 7
|
02517
|
70
|
655
|
605
|
565
|
530
|
450
|
420
|
325
|
275
|
200
|
110
|
-
|
11’ 8”
|
MODEL 9.5
|
02710
|
93
|
1010
|
930
|
900
|
840
|
770
|
710
|
650
|
600
|
530
|
475
|
-
|
13’ 7”
|
MODEL 12
|
02712
|
110
|
1190
|
1130
|
1065
|
940
|
900
|
840
|
795
|
730
|
630
|
570
|
-
|
13’ 7”
|
MODEL 18
|
02718
|
145
|
1300
|
1240
|
1170
|
1130
|
1040
|
1015
|
925
|
880
|
810
|
775
|
470
|
16’ 6”
|
MODEL 24
|
02740
|
237
|
2400
|
2350
|
2190
|
2030
|
1860
|
1730
|
1645
|
1510
|
1395
|
1380
|
830
|
17’ 1”
|
MODEL 36
|
02745
|
256
|
3060
|
2885
|
2775
|
2670
|
2595
|
2480
|
2365
|
2295
|
2205
|
2170
|
1615
|
22’ 6”
|
