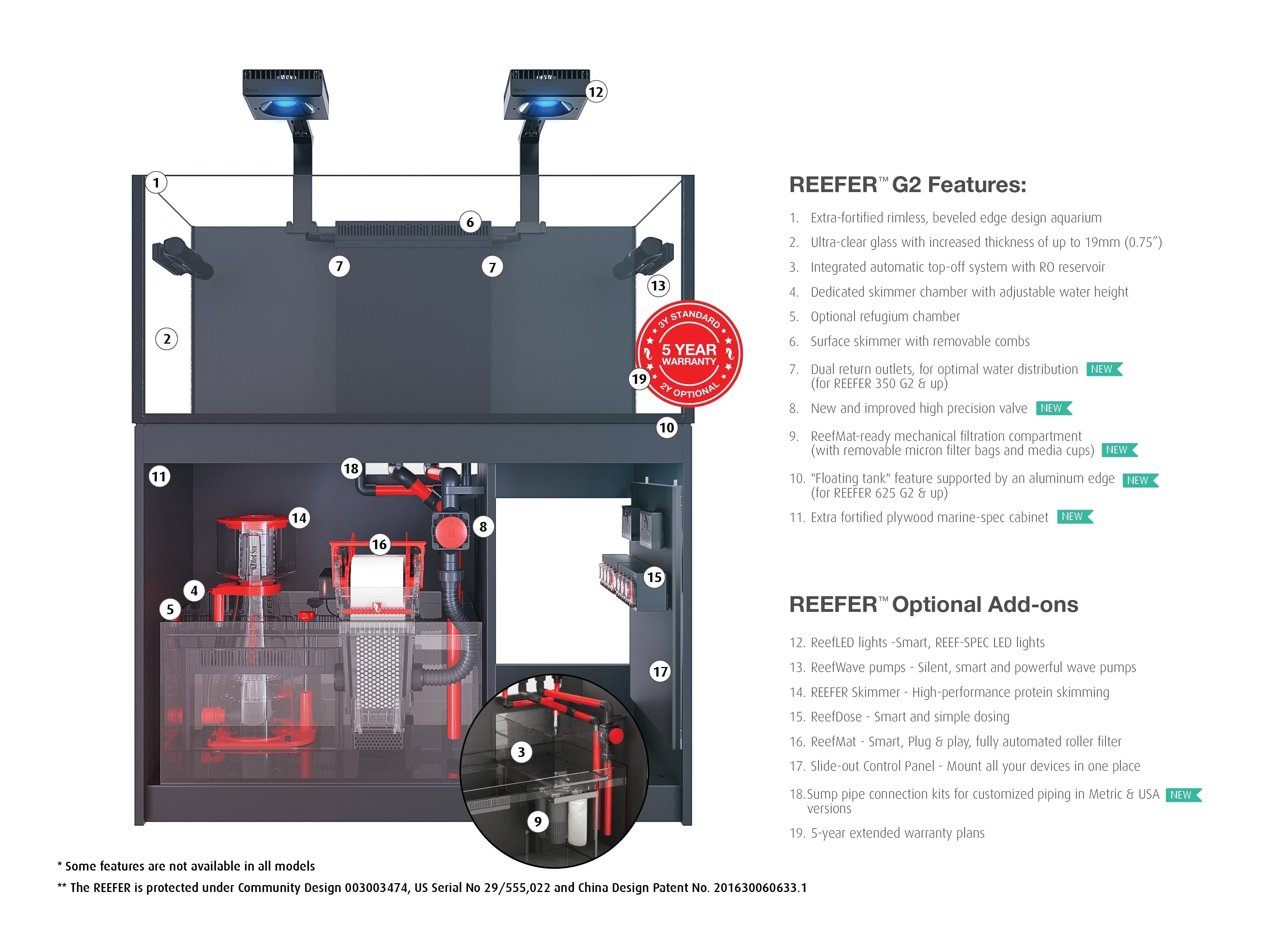

Description
The All-New REEFER G2+
A perfect foundation for any thriving reef aquarium
Designed as the perfect reef-scaping canvas, REEFER G2+ tanks combine REEF-SPEC infrastructure with the freedom to install all your preferred hardware.
REEFER G2+ systems come with new & improved water management, extra-fortified cabinets & aquariums, REEF-SPEC ReefMat-ready sumps, including the ReefATO+ system as standard, and a 5-year extended warranty.
REEFER G2+ SYSTEMS come in a huge variety of sizes (from 170 L / 45 gal to 1000 L / 264 gal), and are the ideal platform for the full “Red Sea Experience”, combining our LED lighting, wave pumps, dosers, and filtration devices into one smart, synchronized eco-system operated via the ReefBeat App.

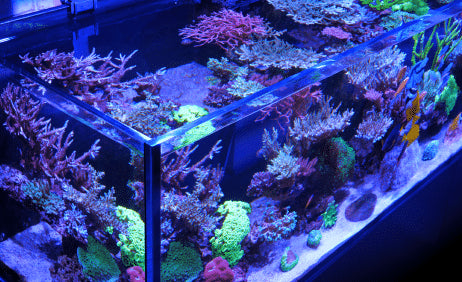

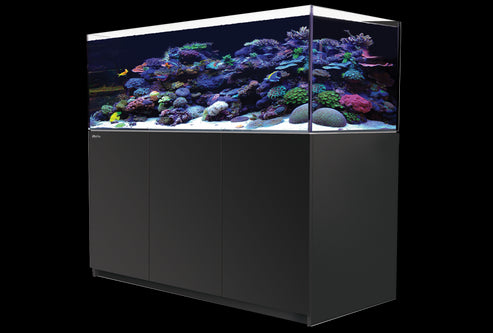

Rimless ultra-clear glass
REEFER G2+ aquariums are rimless, and constructed from ultra-clear, beveled-edge glass with increased thickness of up to 19 mm or 0.75”.

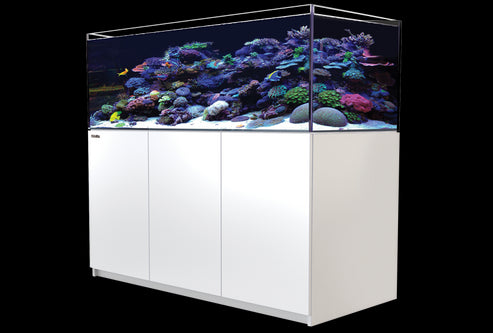

Extra fortified plywood cabinet
The marine-spec laminated cabinets follow the contour of the glass, and are now all fortified and made of plywood. The “floating tank” feature is now reinforced with front aluminum supports on all REEFER 625 G2+ models and bigger.
Dual return pump outlets
All REEFER 350 G2+ models and bigger now have dual side-facing return pump outlets, creating an even better water distribution.

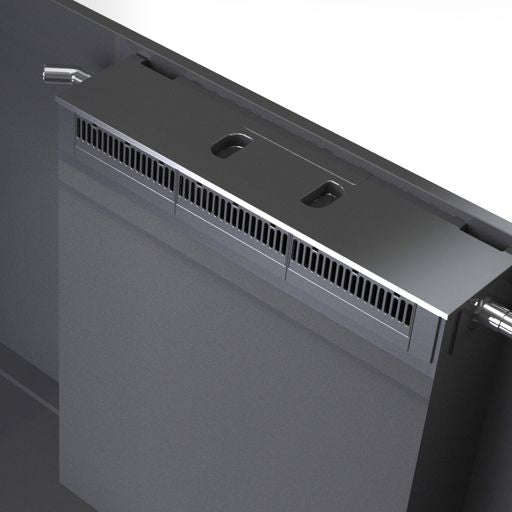

Surface skimmer
The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.

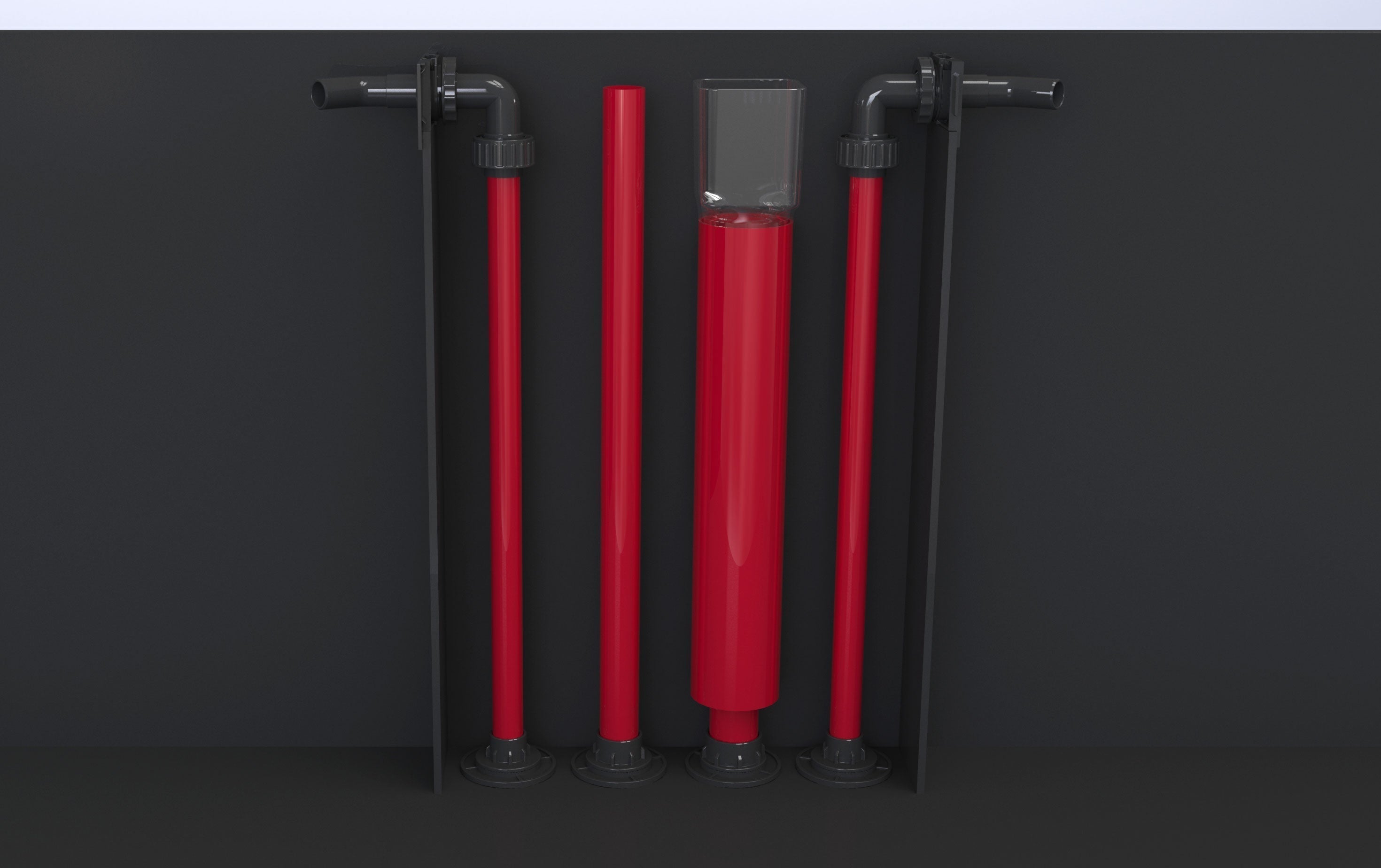

Silent downflow system
The enlarged rectangular inlet to the downflow pipe (on models up to REEFER 625) reduces turbulence, making it easier to regulate.

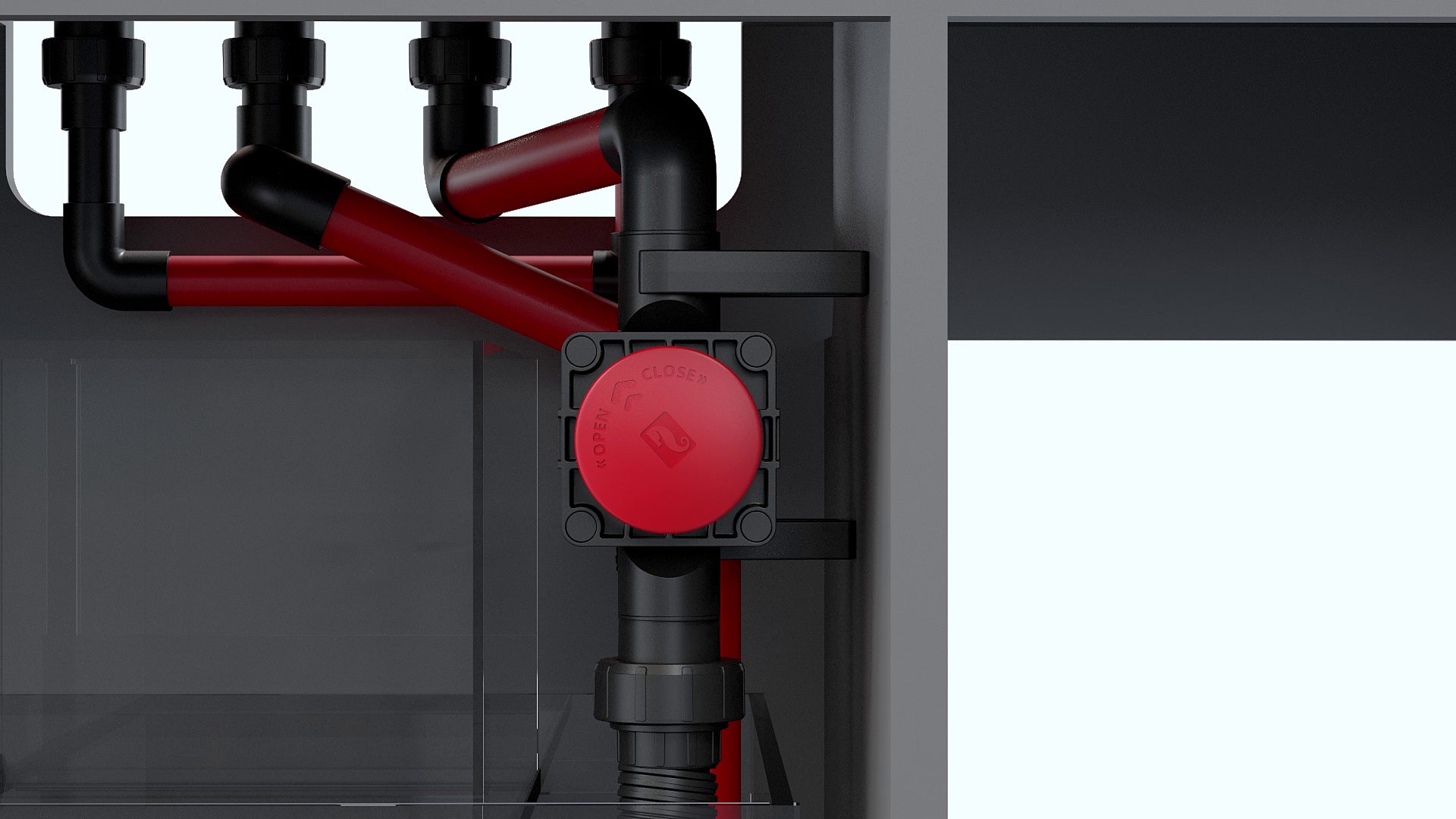

Assembly-ready piping
All pipes are performed with quick connectors at all joints (no gluing required). Bulkhead connectors suitable for both Metric and USA standard pipes can be purchased separately, allowing you to customize your sump piping.

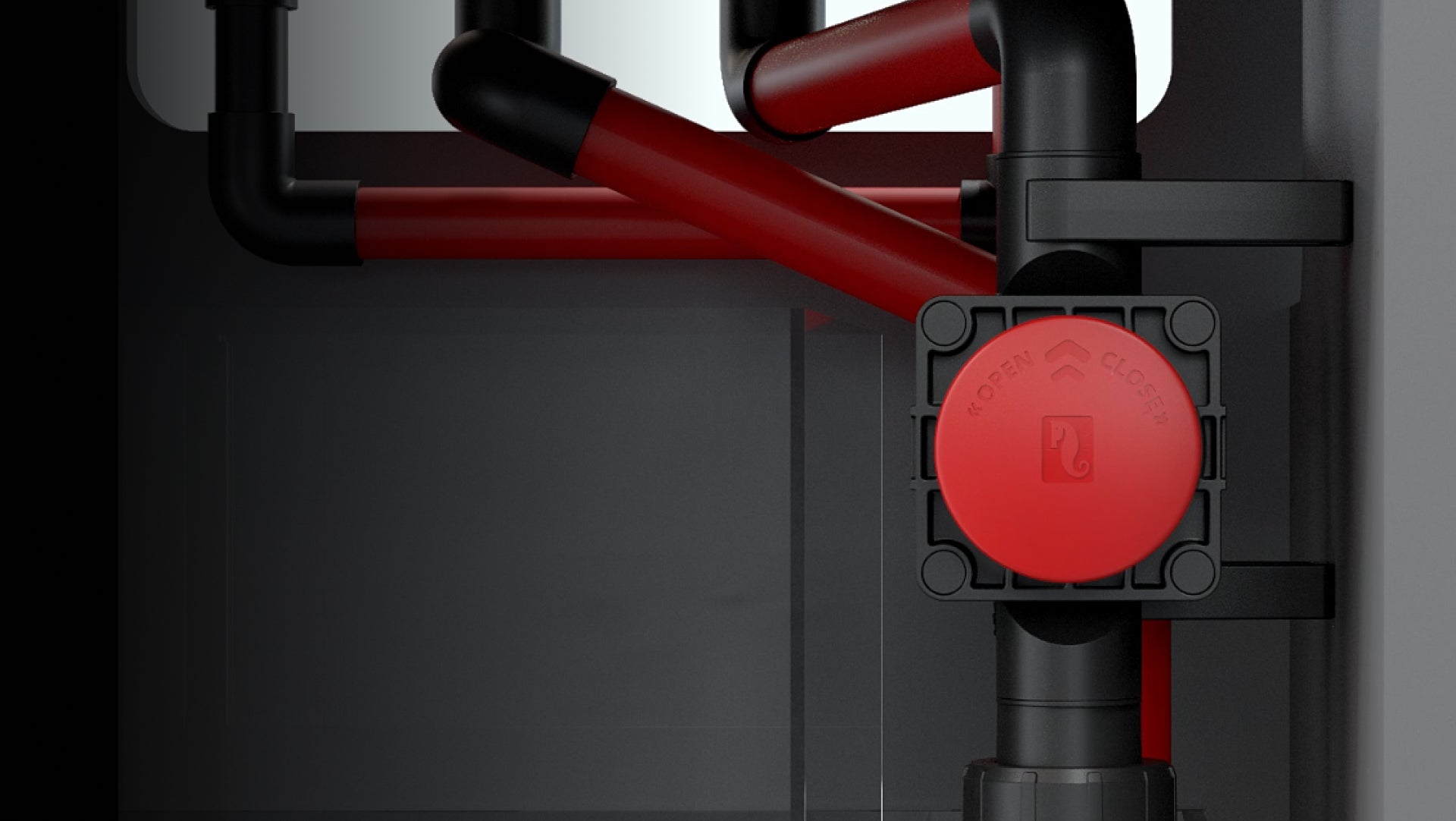

High precision valve
All models now have a new and improved high-precision valve on the downflow pipe, allowing for easy regulation of the flow and a near-silent operation.

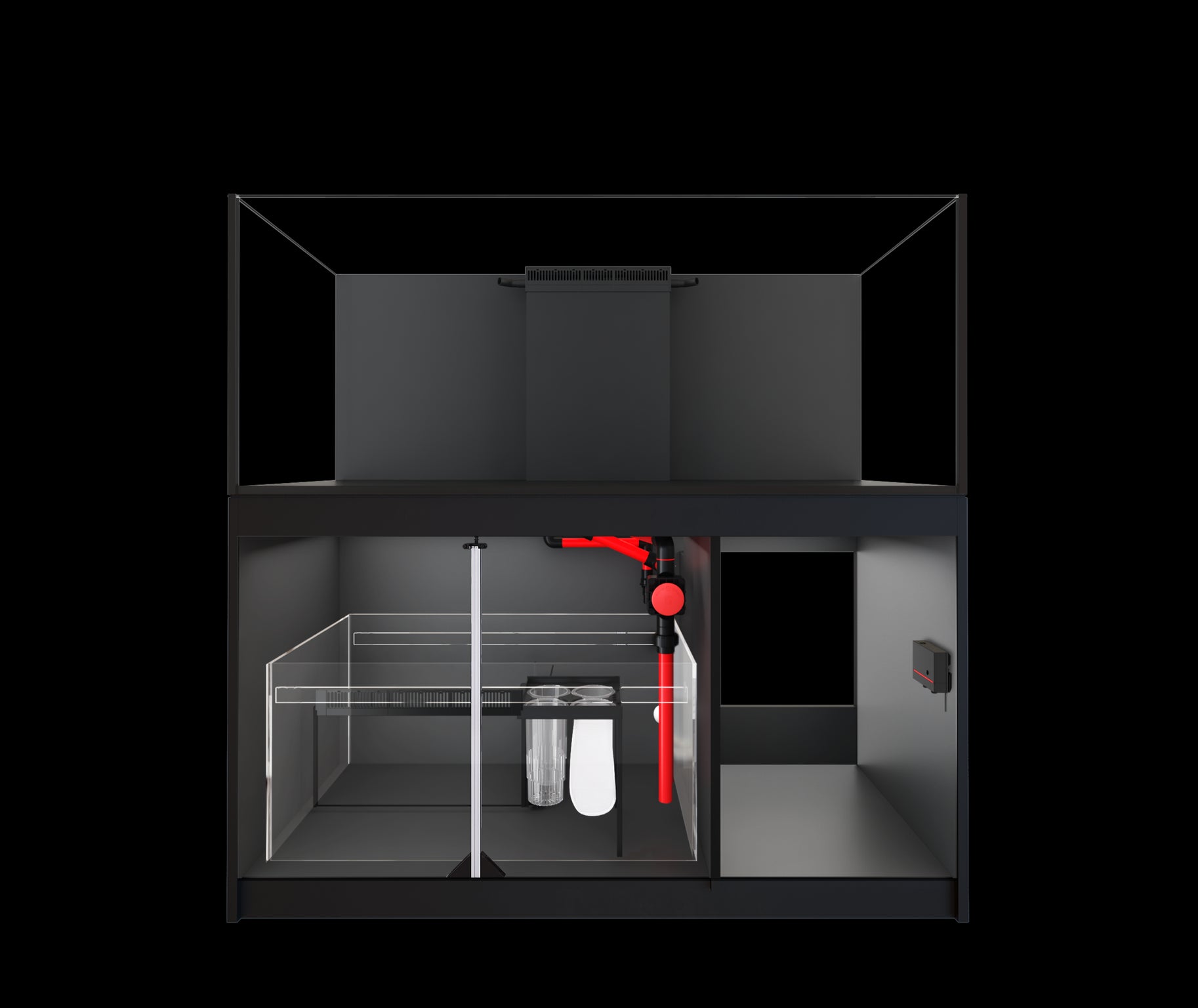

Professional REEF-SPEC sump
The professional sump includes a removable mechanical filtration media compartment (with micron filters & filter cups), an optional refugium compartment, an adjustable height skimmer chamber for optimal skimmer performance, and a bubble trap to prevent air bubbles from returning to the aquarium.
ReefMat ready
The easily removable mechanical filtration compartment allows for a quick Plug & Play installation of the ReefMat 500/1200.

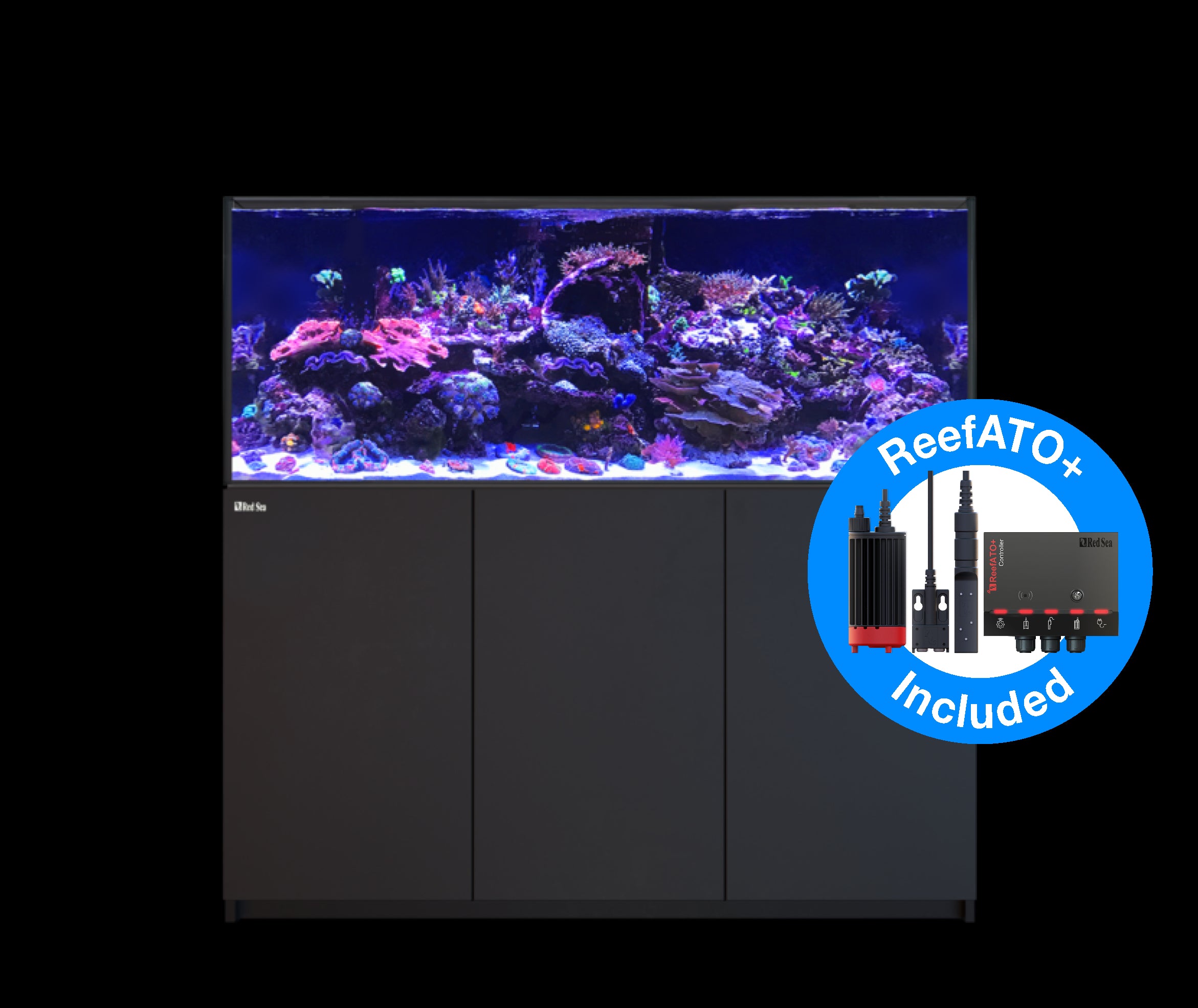

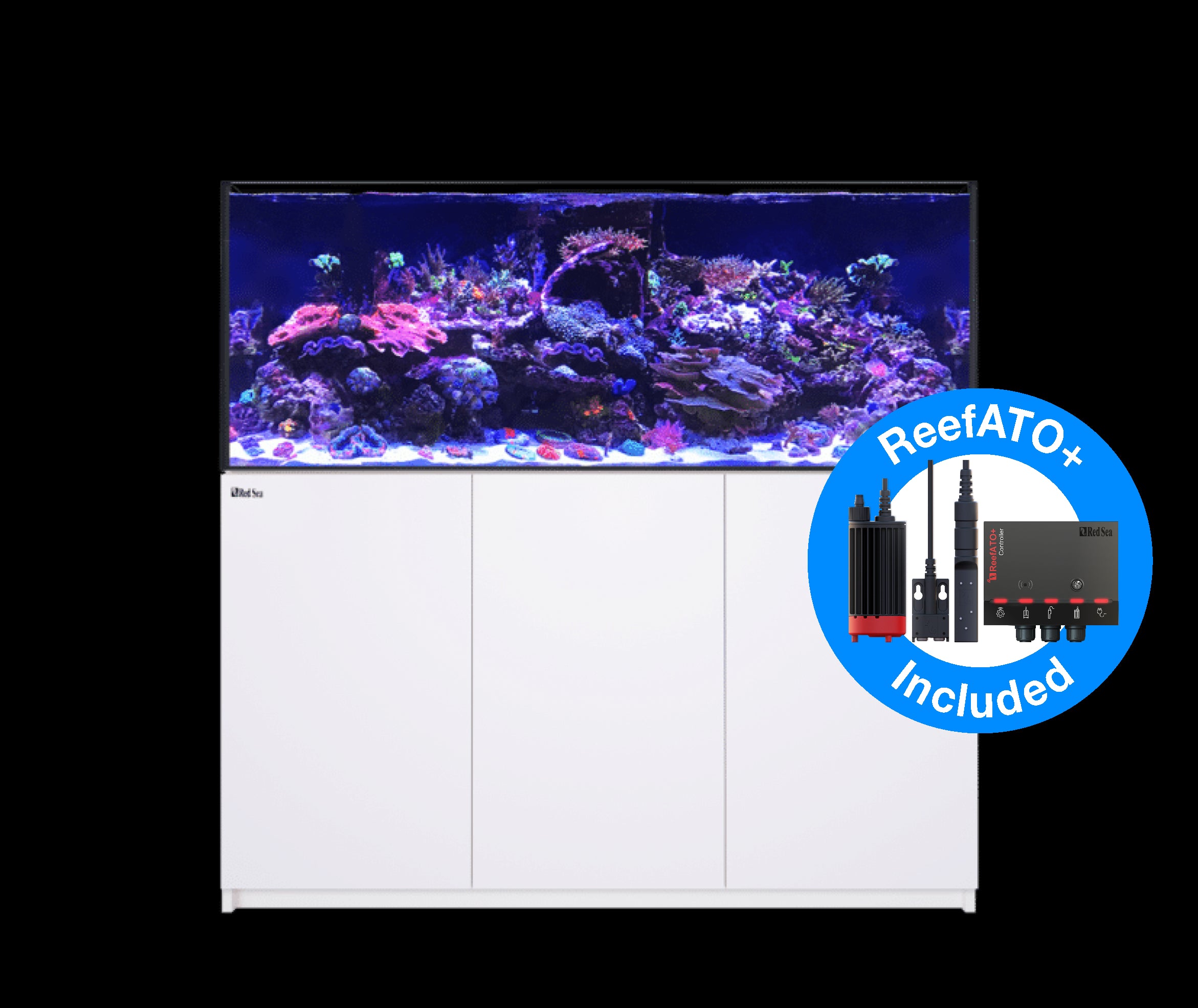

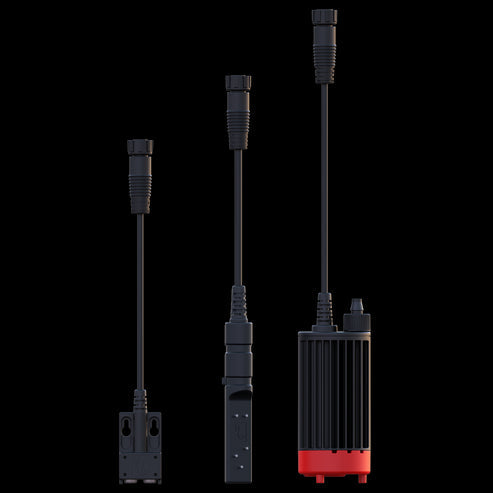

ReefATO+
All REEFER G2+ models come with the state-of-the-art ReefATO+, which keeps your water volume and salinity stable and includes an accurate temperature monitor as well as a highly sensitive leak detector. *Reservoir not included
Chiller & hardware chamber
Most models come with an additional chamber that can be used for a chiller, controllers, and other equipment.
Specifications
Display Tank Dimensions – 59″L x 23.6″H x 25.6″W
Display Tank Volume – 132 Gallons
Total System Height – 58.3″
Total System Volume – 164 Gallons
Sump Volume – 32 Gallons
Front Glass Thickness – 3/4″
Side Glass Thickness – 3/4″
Bottom Glass Thickness – 5/8″
REEFER G2 Models & Specs
REEFER 170 G2 | REEFER 200 G2 | REEFER 250 G2 | REEFER 300 G2 | Reefer 350 G2 | Reefer 425 G2 | Reefer 525 G2 | Reefer 625 G2 | REEFER 750 G2 | REEFER 900 G2 | REEFER-S 850 G2 | REEFER-S 1000 G2 | |
Display tank length | 24″ | 24″ | 36″ | 36″ | 47″ | 47″ | 59″ | 59″ | 71″ | 79″ | 71″ | 82.7″ |
Display tank height | 20″ | 21″ | 21″ | 22″ | 21″ | 22″ | 22″ | 23.6" | 23.6" | 25.6"″ | 25.6"″ | 25.6"″ |
Display tank width | 20″ | 22.6″ | 20″ | 22.6″ | 20″ | 23.6″ | 23.6″ | 25.6″ | 25.6″ | 25.6″ | 26 3/4″ | 26 3/4″ |
Total system height | 54″ | 55″ | 55″ | 56″ | 55″ | 56″ | 56″ | 58.3″ | 58.3″ | 60″ | 60″ | 60″ |
Total system water vol. | 44 gal | 53 gal | 65 gal | 80 gal | 90 gal | 112 gal | 139 gal | 164 gal | 200 gal | 240 gal | 225 gal | 265 gal |
Display tank water vol. | 33 gal | 42 gal | 54 gal | 65 gal | 72 gal | 88 gal | 108 gal | 132 gal | 160 gal | 192 gal | 180 gal | 210 gal |
In-cabinet sump water vol. | 10 gal | 11 gal | 11gal | 15 gal | 18 gal | 24 gal | 31 gal | 32 gal | 40 gal | 48 gal | 45 gal | 55 gal |
Ultra-clear front glass | 3/8″ | 3/8″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 5/8″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
Ultra-clear side glass | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 5/8″ | 5/8″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
Bottom glass | 3/8″ | 3/8″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 5/8″ | 5/8″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
