Description
A new reef keeping standard
Designed as the perfect reef-scaping canvas, REEFER G2+ tanks combine REEF-SPEC infrastructure with the freedom to install all your preferred hardware.
REEFER G2+ systems come with a new and improved water management system, extra fortified cabinets and aquariums, ReefMat & refugium-ready sumps, extended warranty plans, and are available in a wide variety of sizes, to fit any space.
REEFER G2+ systems are also the ideal platform for the full “Red Sea Experience”, combining our LED lighting, wave pumps, dozers, and filtration devices into one smart, synchronized eco-system operated via the ReefBeat App.

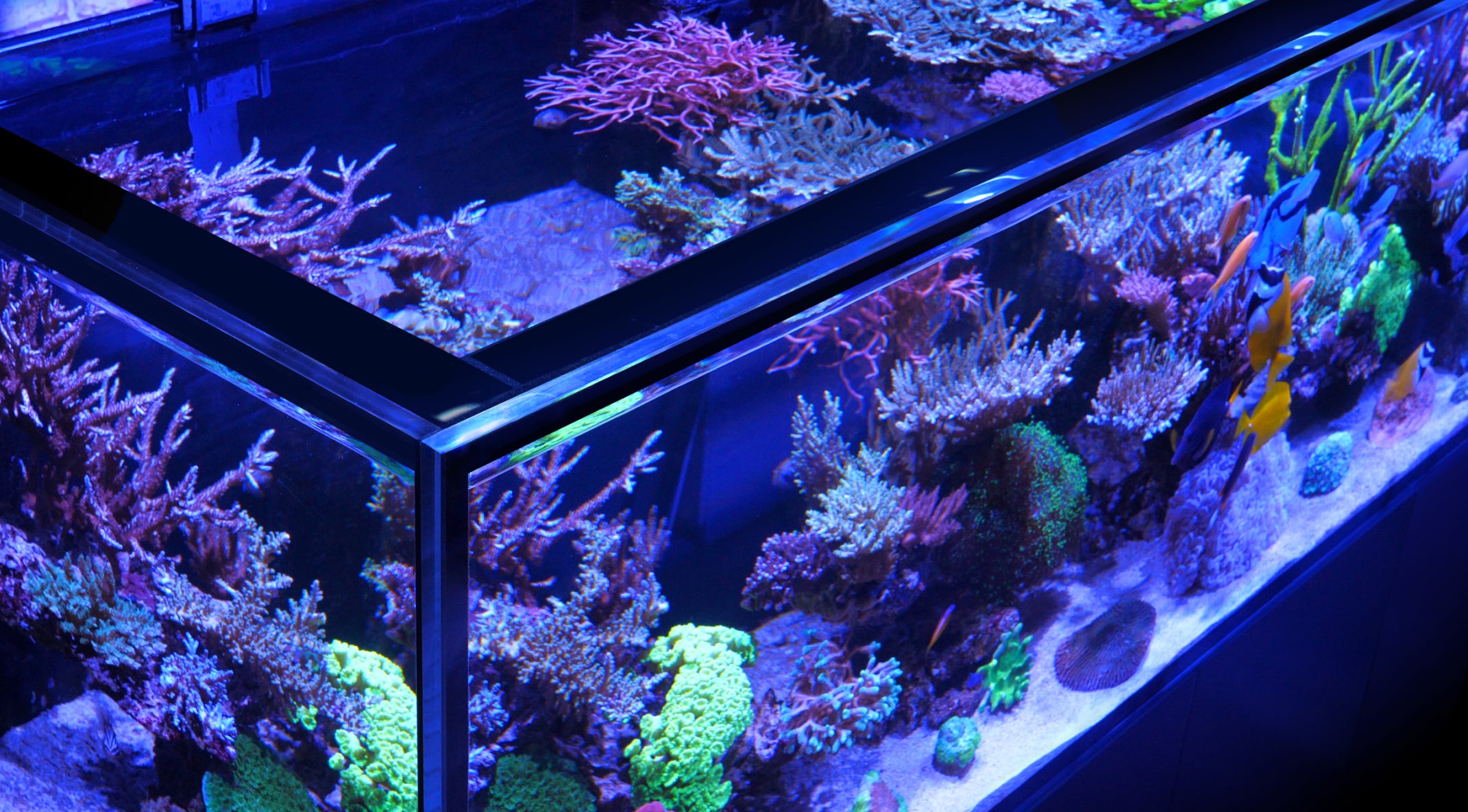

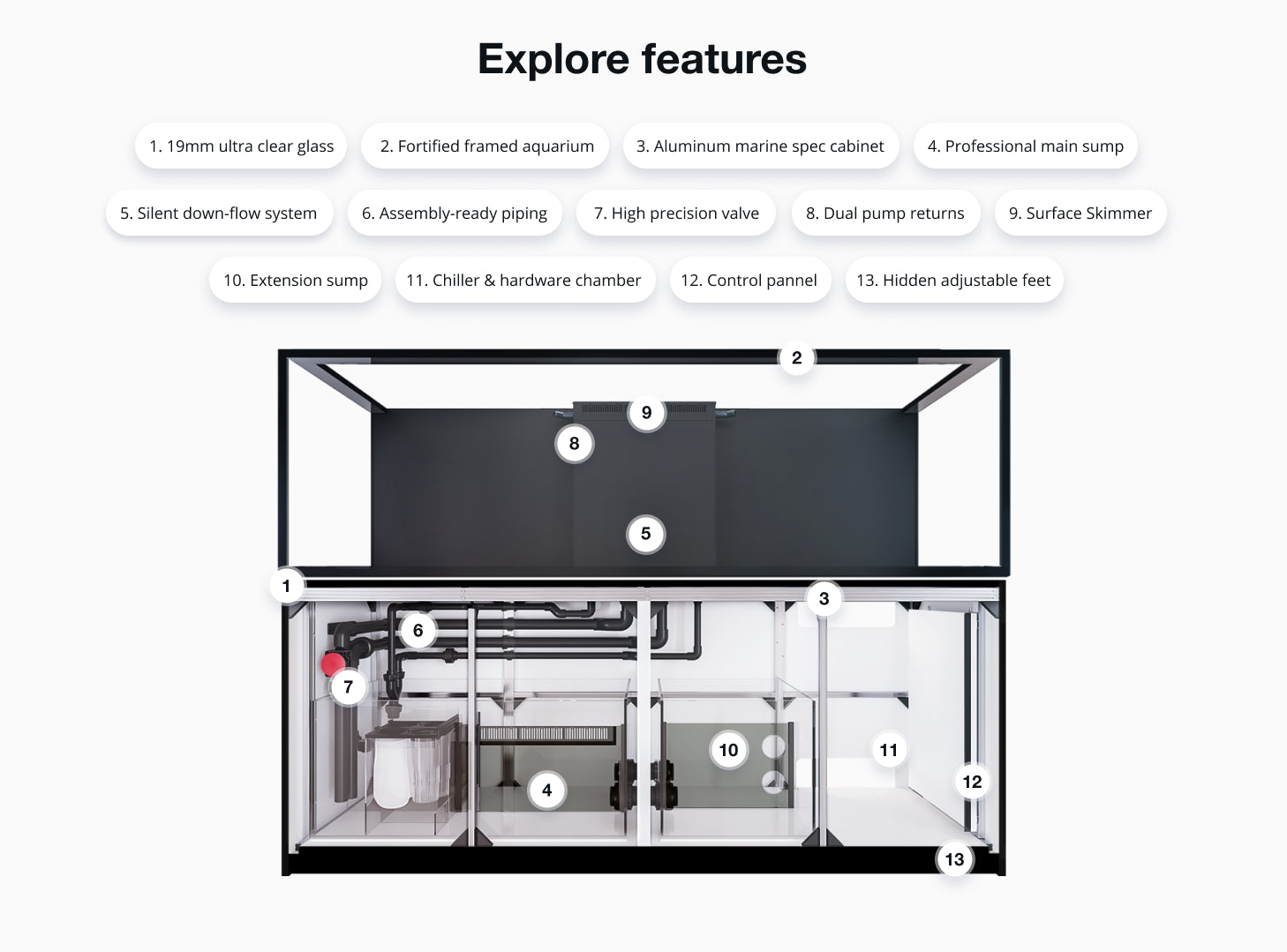

Rimless ultra-clear glass
REEFER G2+ aquariums are rimless, and constructed from ultra-clear, beveled-edge glass with increased thickness of up to 19 mm or 0.75”. The 19mm low-iron glass provides superior clarity, showing the true colors of your reef inhabitants.

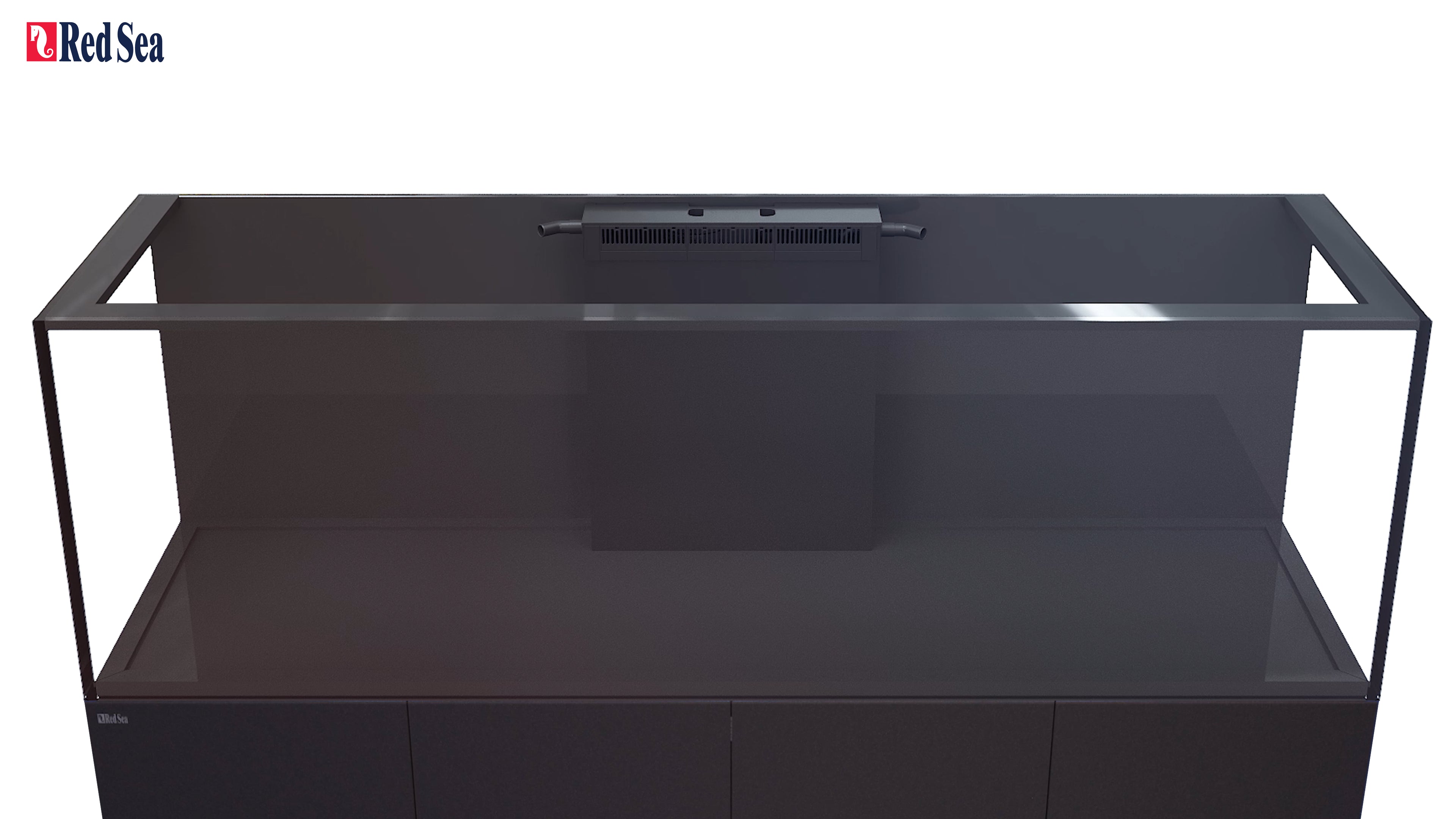

Fortified internal framed aquarium
REEFER-S aquariums sport an elegant jet-black internal frame, which fortifies the 19mm thick ultra-clear glass.
Dual return pump outlets
The dual side-facing return pump outlets create an optimal flow in the aquarium. The outlets can be attached to a single or dual pump.
Surface skimmer
The central overflow box is has a large surface skimmer, with removable comb parts for periodic cleaning.
Silent downflow system
The regulated silent downflow system comes with an improved, high-precision valve for finer flow adjustments, as well as an emergency downflow bypass pipe, with unrestricted flow to the sump.

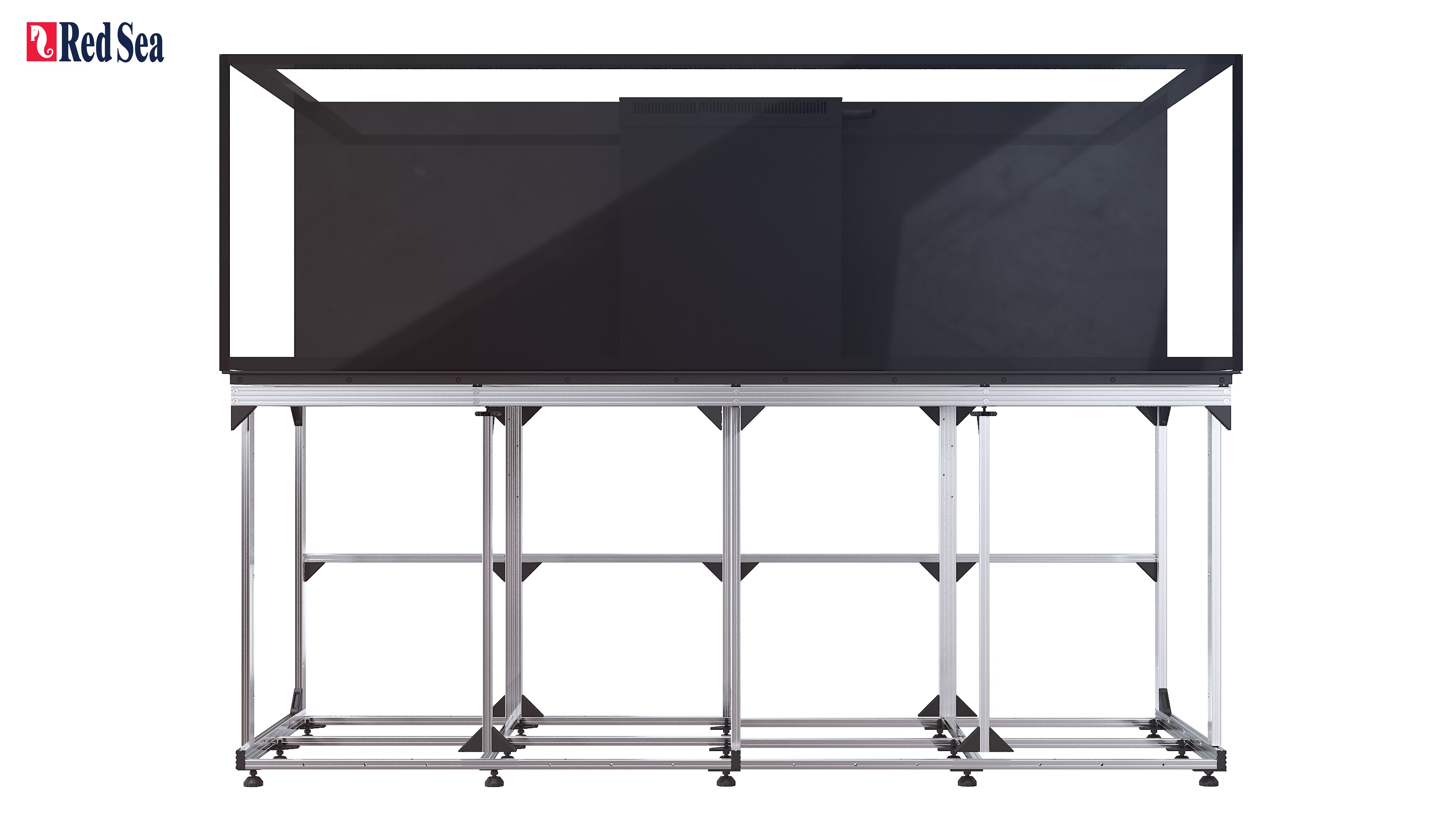

Aluminum marine spec cabinet
The marine-spec cabinet has a replaceable exterior, attached to a superior and robust aluminum superstructure.

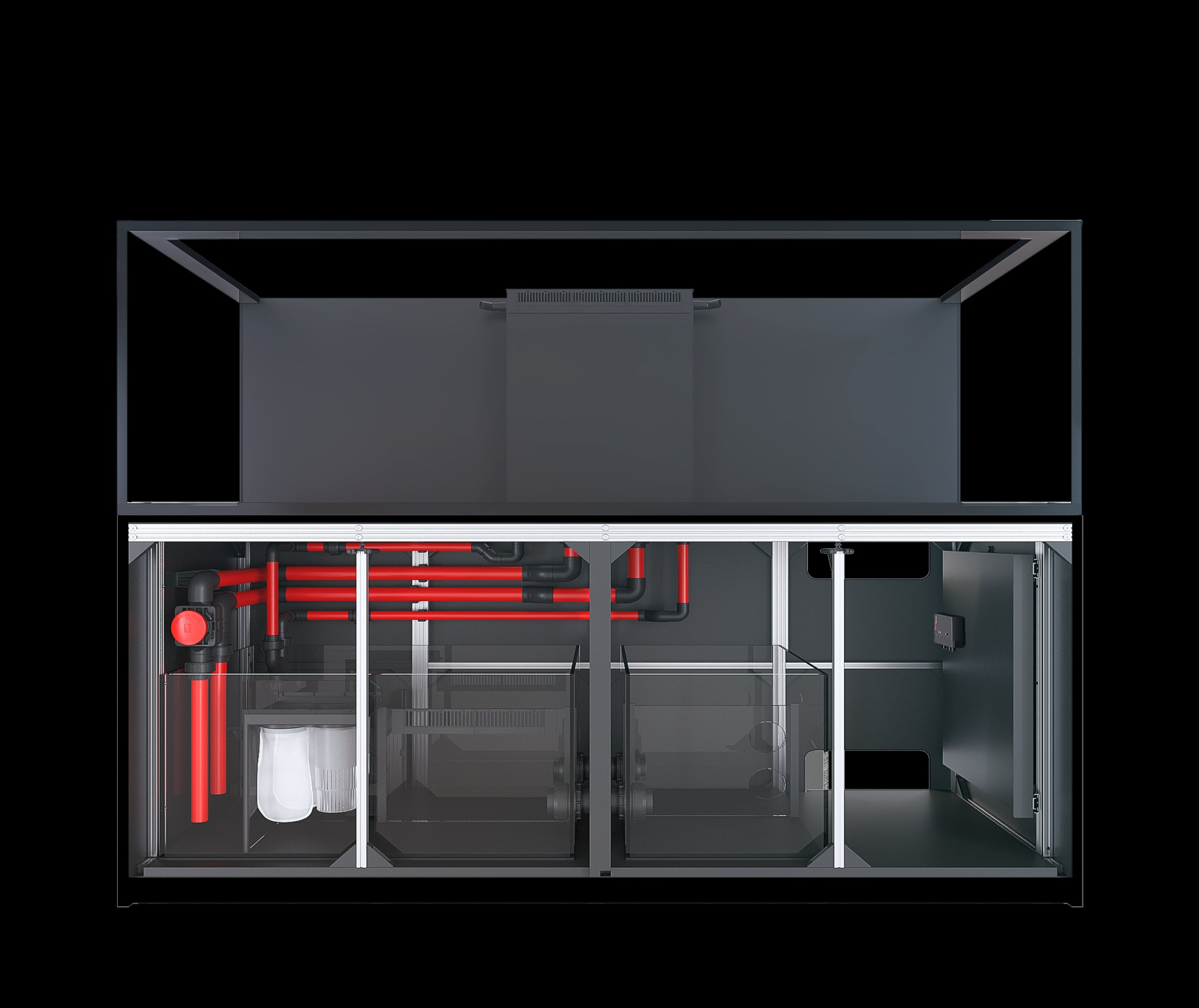

Assembly-ready piping
No gluing is required! All pipes are performed with quick connectors at all joins. Bulkhead connectors are suitable for both Metric and USA standard pipes and can be purchased separately, allowing you to customize your sump piping.
High precision valve
Silent downflow system with a new high-precision valve, enabling finer flow adjustments.
ReefMat Ready
Plug & Play installation for ReefMat 500/1200, together with Refugium.

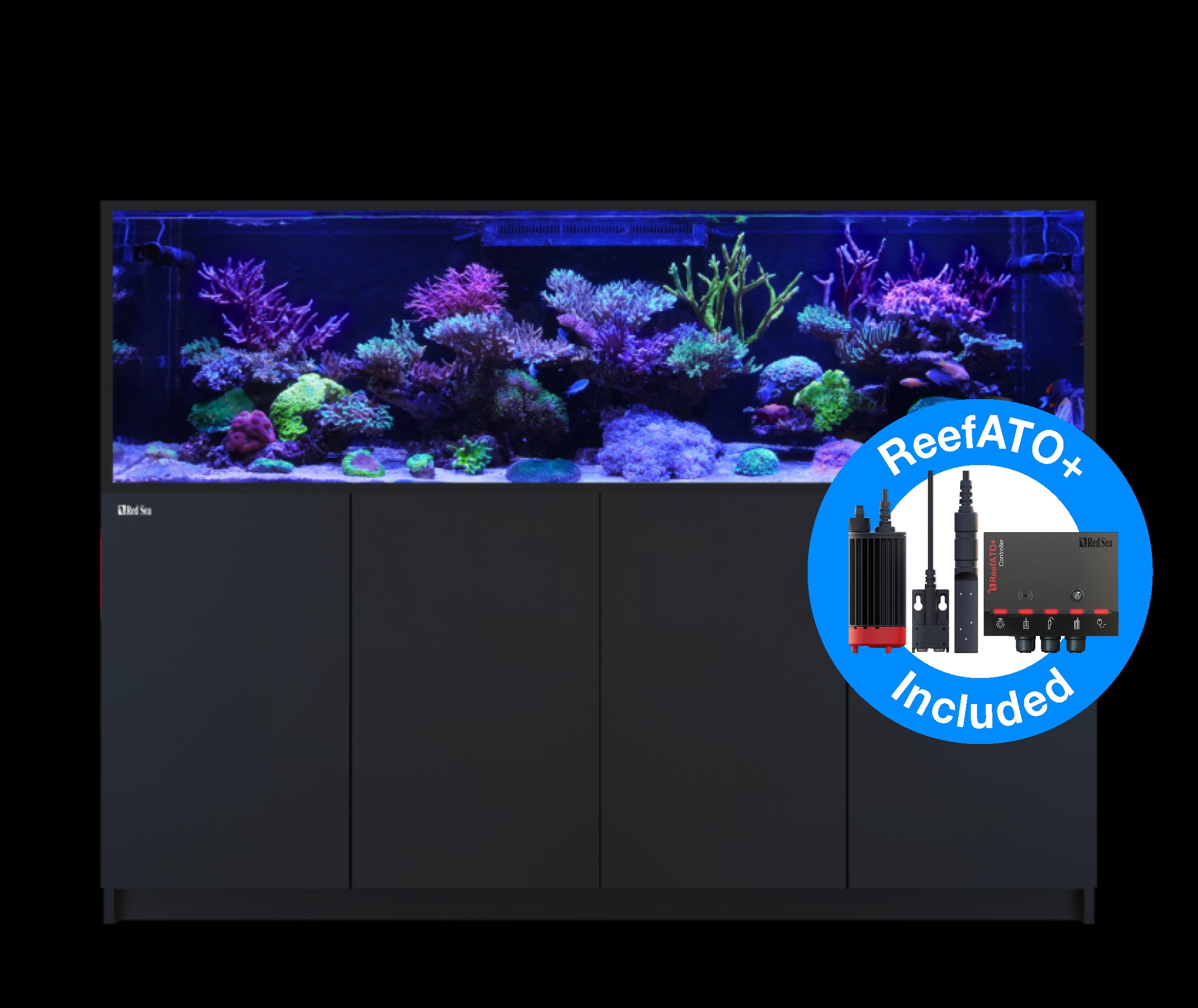

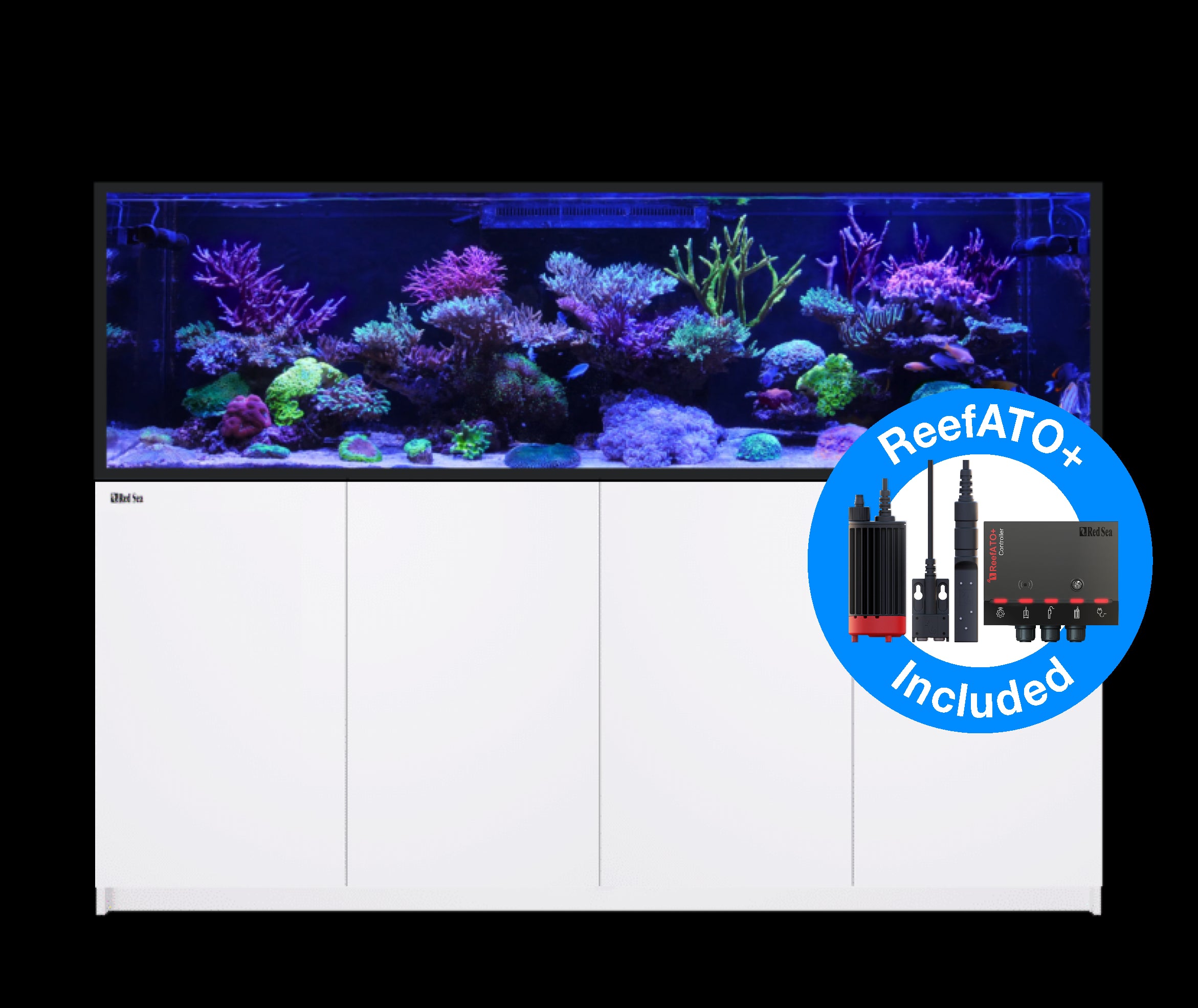

ReefATO+
All REEFER G2+ models come with the state-of-the-art ReefATO+, which keeps your water volume and salinity stable and includes an accurate temperature monitor as well as a highly sensitive leak detector. *Reservoir not included

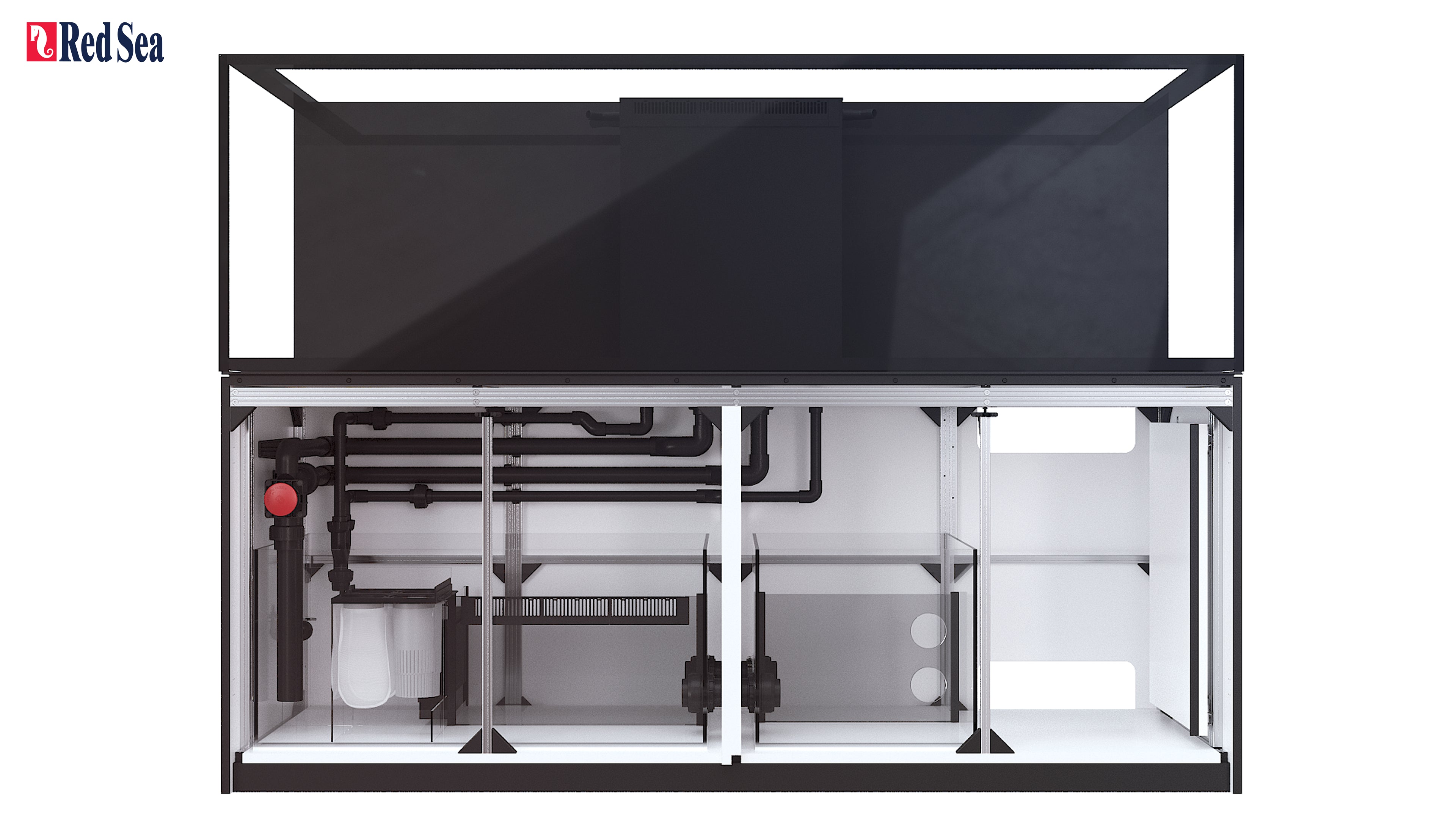

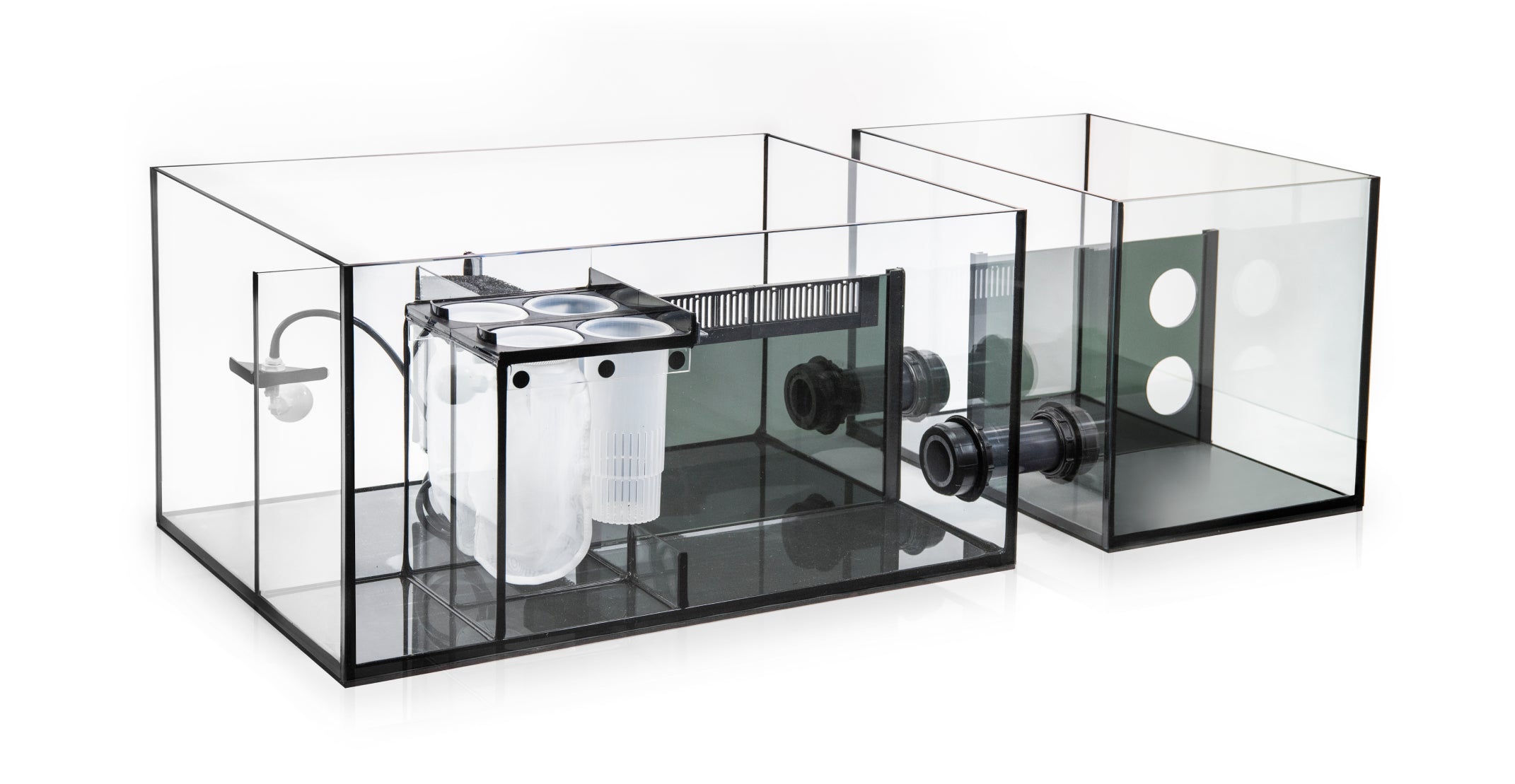

Professional main sump
The main sump is refugium-ready, containing all the filtration functions, and has an adjustable height skimmer chamber, enabling you to set the water level between 20-28cm (7.9”-11”) for optimal skimmer performance.
Extension sump
The extension sump can be used for a dedicated frag tank, a larger refugium, or simply for extra filtration. Alternatively, the extension sump can be disconnected from the main sump and used as a R/O reservoir or for saltwater changes.
Chiller & hardware chamber
All REEFER-S models have a separate chamber for a chiller, controller, or other equipment.
Control panel
Provides easy mounting and access for controllers and other equipment. *Actual color of the cabinet interior is black.
Hidden adjustable feet
The adjustable feet allow perfect leveling on any surface and are hidden by the cabinet exterior for a more elegant look.
Specifications
Display Tank Dimensions – 82.7″L x 25.6″H x 26.75″W
Display Tank Volume – 210 Gallons
Total System Height – 60″
Total System Volume – 265 Gallons
Sump Volume – 55 Gallons
Front Glass Thickness – 3/4″
Side Glass Thickness – 3/4″
Bottom Glass Thickness – 3/4″
REEFER G2 Models & Specs
REEFER 170 G2 | REEFER 200 G2 | REEFER 250 G2 | REEFER 300 G2 | Reefer 350 G2 | Reefer 425 G2 | Reefer 525 G2 | Reefer 625 G2 | REEFER 750 G2 | REEFER 900 G2 | REEFER-S 850 G2 | REEFER-S 1000 G2 | |
Display tank length | 24″ | 24″ | 36″ | 36″ | 47″ | 47″ | 59″ | 59″ | 71″ | 79″ | 71″ | 82.7″ |
Display tank height | 20″ | 21″ | 21″ | 22″ | 21″ | 22″ | 22″ | 23.6" | 23.6" | 25.6"″ | 25.6"″ | 25.6"″ |
Display tank width | 20″ | 22.6″ | 20″ | 22.6″ | 20″ | 23.6″ | 23.6″ | 25.6″ | 25.6″ | 25.6″ | 26 3/4″ | 26 3/4″ |
Total system height | 54″ | 55″ | 55″ | 56″ | 55″ | 56″ | 56″ | 58.3″ | 58.3″ | 60″ | 60″ | 60″ |
Total system water vol. | 44 gal | 53 gal | 65 gal | 80 gal | 90 gal | 112 gal | 139 gal | 164 gal | 200 gal | 240 gal | 225 gal | 265 gal |
Display tank water vol. | 33 gal | 42 gal | 54 gal | 65 gal | 72 gal | 88 gal | 108 gal | 132 gal | 160 gal | 192 gal | 180 gal | 210 gal |
In-cabinet sump water vol. | 10 gal | 11 gal | 11gal | 15 gal | 18 gal | 24 gal | 31 gal | 32 gal | 40 gal | 48 gal | 45 gal | 55 gal |
Ultra-clear front glass | 3/8″ | 3/8″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 5/8″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
Ultra-clear side glass | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 5/8″ | 5/8″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
Bottom glass | 3/8″ | 3/8″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 5/8″ | 5/8″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
