Description

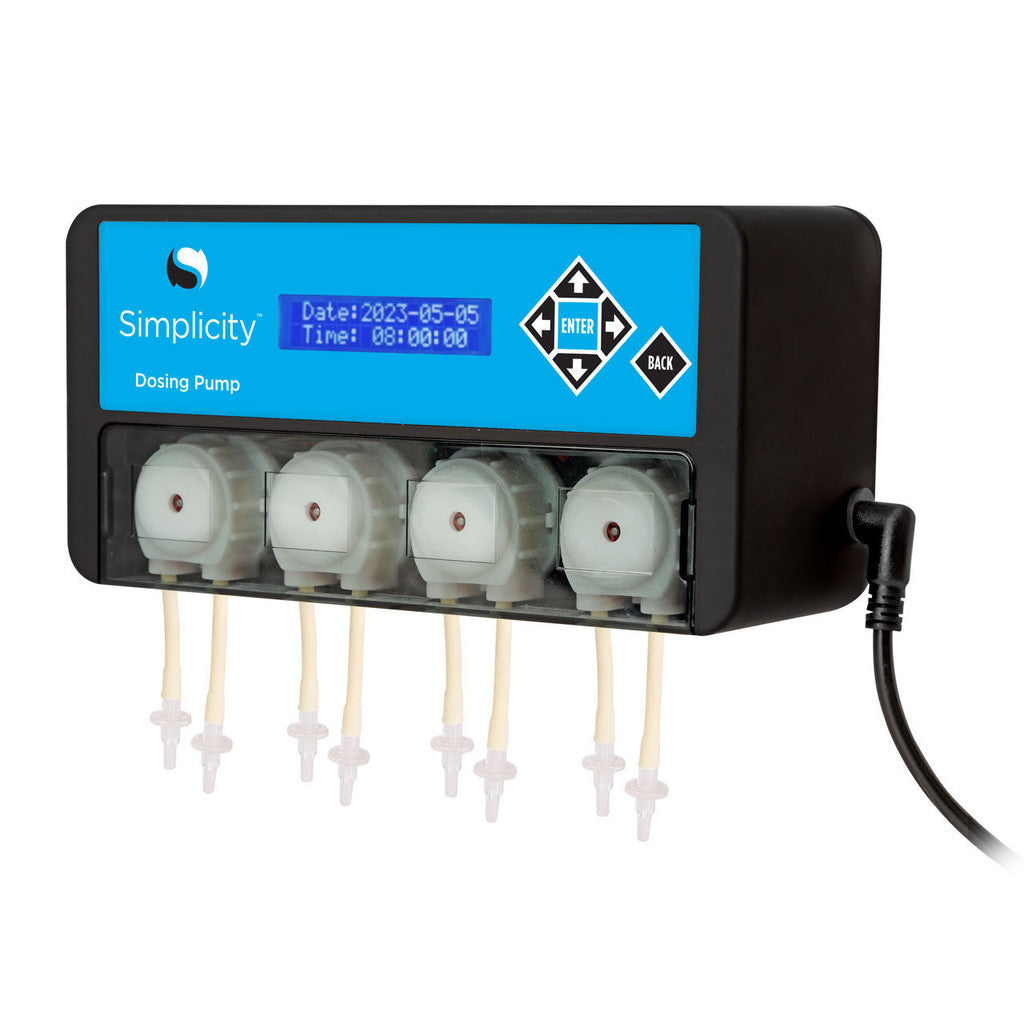

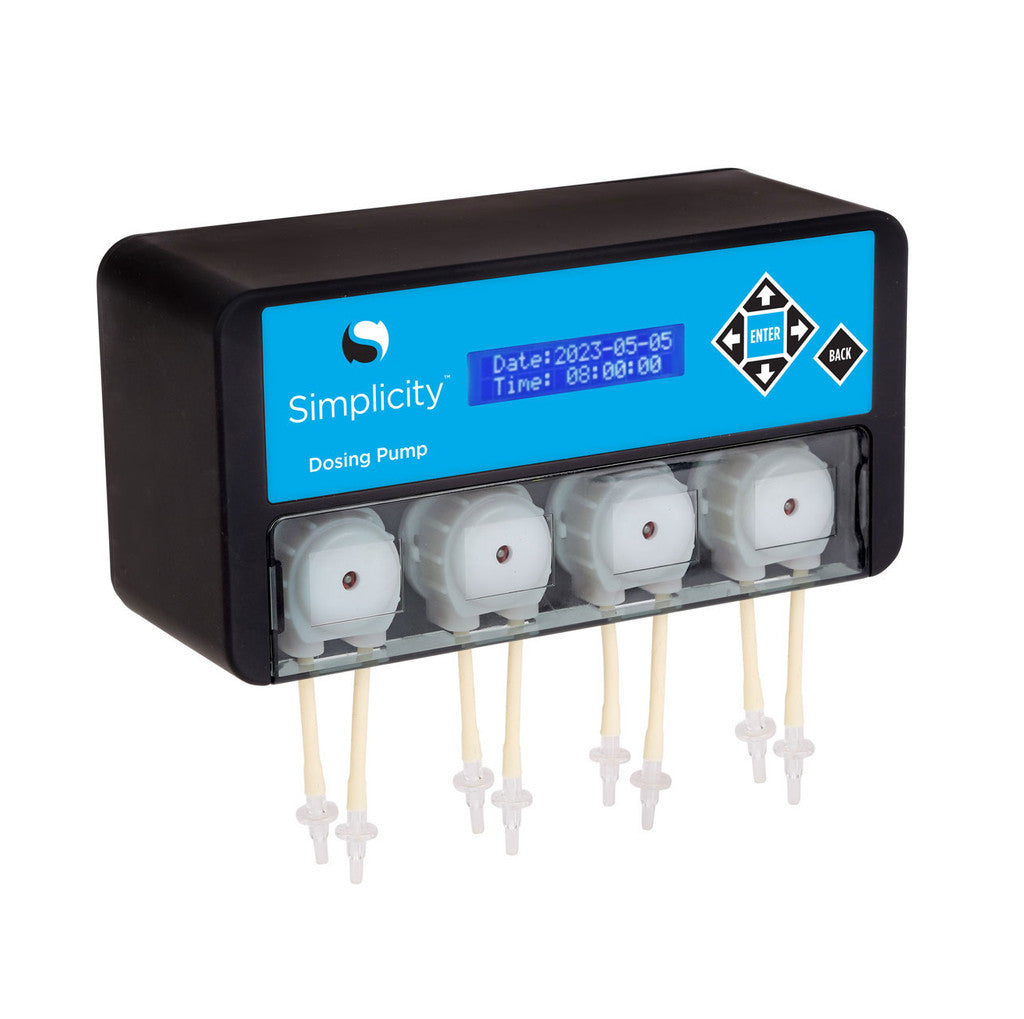

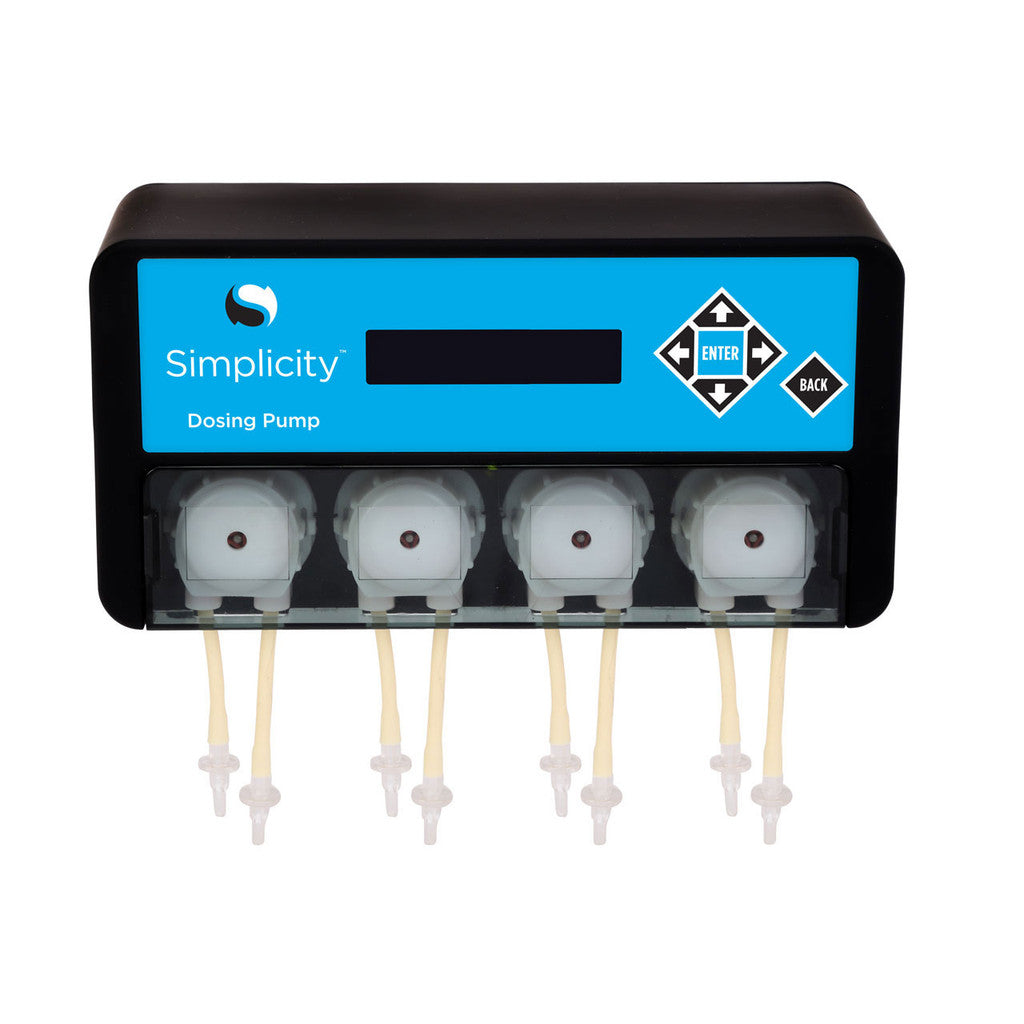

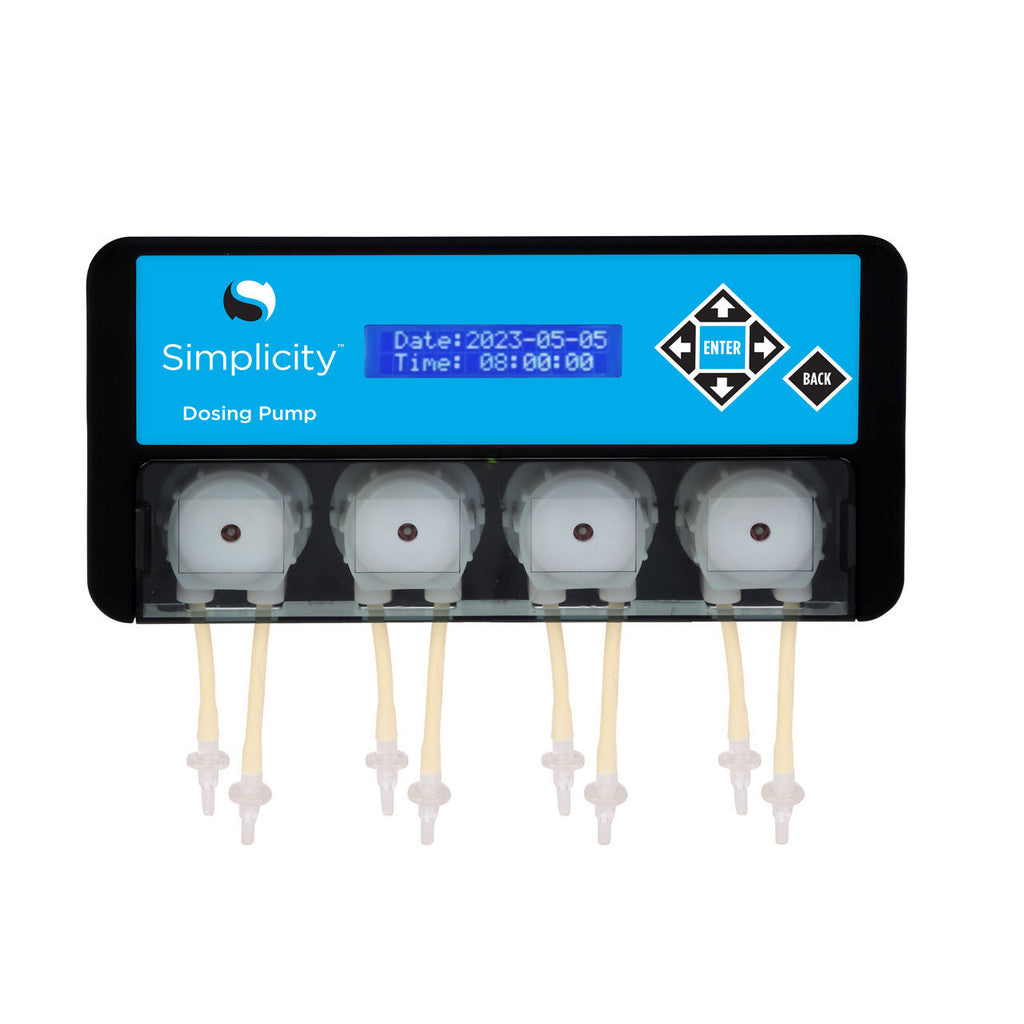

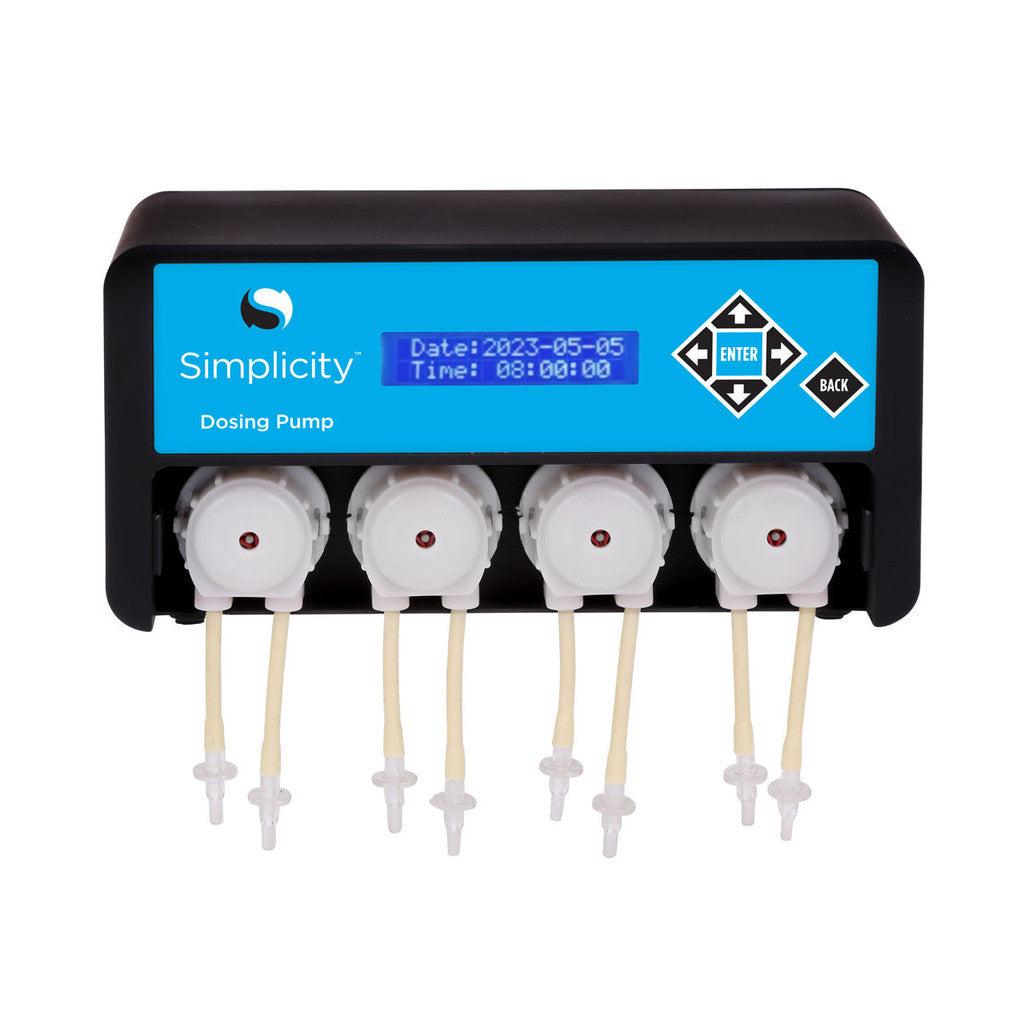

The Simplicity Dosing Pump is an accurate, effective, and affordable liquid dosing solution. The four dosing heads offer high-precision liquid dosing combined with easy-to-use integrated controls. The compact, space-saving design can be flush mounted to a wall or placed on a shelf. The included pump head labels make identifying dosing solutions easy.
- 4 Individually Programmable Pumps
- Compact, Space Saving Design
- Multiple Mounting Options
- Custom-label Each Pump Head
High-precision Liquid Dosing
Accurate to 0.1 mL for every 10 mL dosed.
Built-in Control
Each individually programmable pump can dose as frequently as once per hour or as infrequently as once every 30 days.

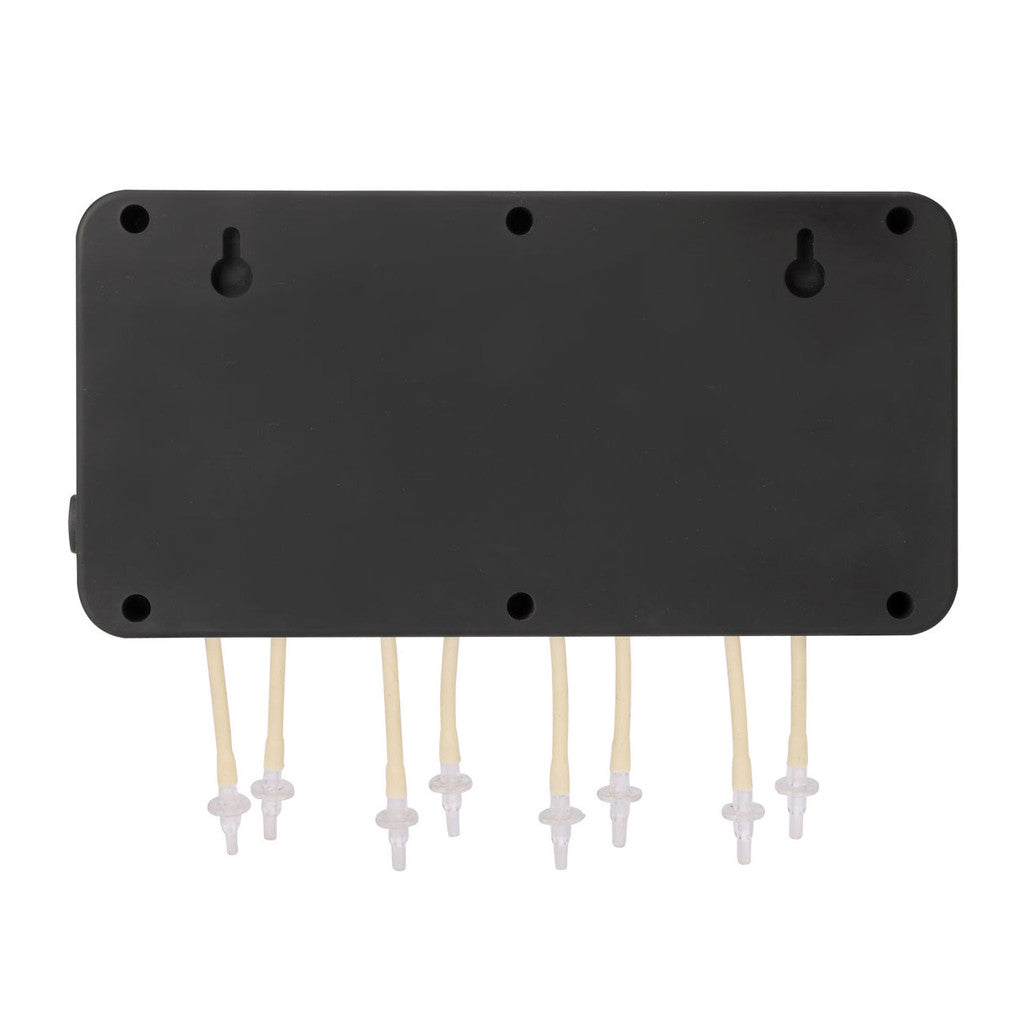

Flexible Installation Options
Simply place it on a shelf or mount it flush to a wall.
Space Saving Design
The compact design measures 7.9” long x 3.0” wide x 4.0” tall.
Quickly Identify Each Pump Head
The included pump head labels make identifying dosing solutions easy.
The Perfect Partner
Compatible with all Simplicity Dosing Containers
Specifications
- Dimensions: 7.9” x 3.0” x 4.0” (L x W x H); does not include tubing
- Weight: 1.60 lbs
- Color: Black
- Power Consumption: 7.5W
- Power Input: 12V DC
- Power Cord Length: 5 ft
- Warranty: 3-year manufacturer prorated warranty
Pump Specifications
- Control: Built-in (Not Bluetooth or Wi-Fi Compatible) (Control or Controllability)
- Control Interval: Independently-control pump heads from once per hour to once every 30 days
- Flow Rate: 50 mL per minute
- Maximum Head Pressure: 5 ft
- Accuracy: +/- 0.1 mL per 10 mL
- Dosing Volume: From 1 mL up to 9999 mL
What's Included (i.e., what’s in the box)
- Simplicity 4-Head Dosing Pump
- Power Supply
- Pump Head Labels
- Measuring Cup
- Check Valves (5x)
- Mounting Screws (2x)
- Spare Pump Head
- Mounting Template
