Abyzz A100 1,880gph Commercial Grade Controllable DC Pump
The innovative Abyzz A100 DC Pump is built by a German company for the US market that only uses the best parts to make an incredibly reliable, efficient controllable DC pump. Featuring laser welded titanium encased Neodymium rotor, powerful and programmable menu-controlled electronic driver, and a sinusoidal three-phase synchronous motor, the A100 is in a class of its own in terms of size and performance.
The motor operates at an efficiency factor of over 90% which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power-hungry higher voltage pumps.
The menu-controlled driver and motor run on a mere 12V and because of that, it can be used in a myriad of applications.
The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits - CaCO3). In conjunction with the silicon carbide bearings and special Tungsten carbide shaft, this feature provides for low-maintenance operations.
The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great ensure a long operational lifetime, and meet the most demanding requirements and highest quality standards.
Features
- Max Flow - 1,880 GPH
- Max Head - 19.5 feet
- 2,200 BOOSTMODE®max flow rate
- Internal or External application
- Fully Controllable from 0-100% in 1% increments
- MCFS® (Menu Controlled Flow Sequencer) for random, wave, etc.
- Comprehensive safety functions (e.g. dry run, temperature sensor, and overload protection)
- Soft startup
- Lockable cables and plug connections
- Remarkably low-noise operation
- Removable motor stand and rotatable volute
- 10-year warranty
This product was developed and is manufactured in Germany by Venotec.
Applications
- Freshwater and Saltwater Aquaria
- Ponds
- Creeks
- Pools
- Spas
- Hydroculture
- Aquaculture
This product was developed and is manufactured in Germany by Venotec.

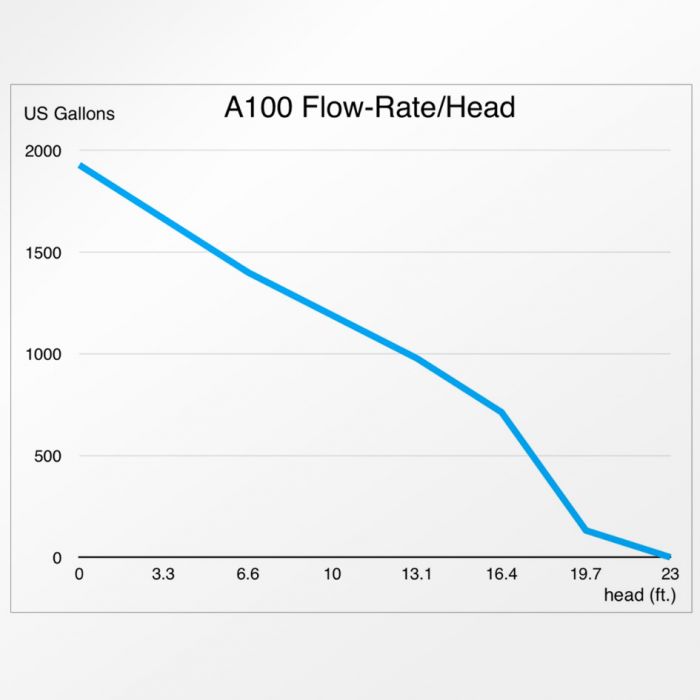

Abyzz A100 DC Pump Specifications
BOOSTMODE®max flow rate: 2,200 gph / 8,500 lph
Normal mode max flow rate:1,880 gph / 7,300 lph
Max delivery height: 19.5 ft / 6.0 meters

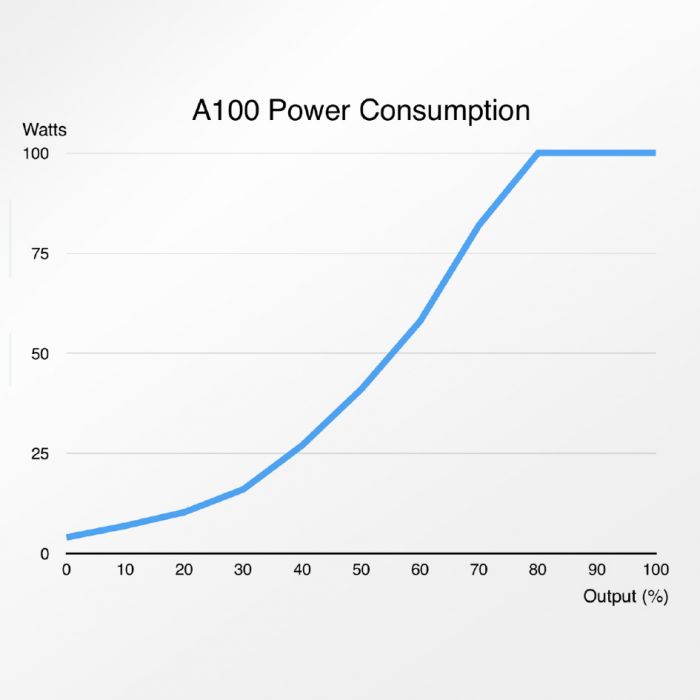

Rated input: 5-100W
Input voltage: 90V-240V~ @ 50-60Hz
Operating Voltage: 12V
Ambient temperature: 35.6°F - 104°F +2°C...+40°C
Maximum operating pressure: 17.4 PSI / 1,2 bar
Maximum immersion depth: 6.5 ft / 2 meters
Pump cable length: 6.5 ft/ 2m
Inlet/outlet connections:1.5"/ 1.0" (40mm/25mm)suitable for PVC/AVB adhesive fittings
What's Included
- Abyzz A100 pump
- 90V/240V driver
- 5ft power cable
- Driver/Controller connecting cable: 6.5 ft
- Operating manual
